THRUSTER SPECIFICATION
Model: EMT - 4 (ST 546)
Thrust Capacity: 68 KG / 667 N
Thruster Stoke (MM): 76
Input Watt: 200 watts
Input Supply: 415 V
Oil Capacity: 4.5 Ltr.
Weight: 40 Kg.

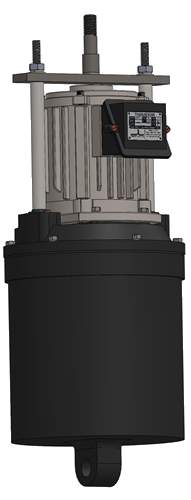

Electro-Hydraulic Thruster:
The Speedage Thruster is an electro hydraulic device to apply thrust force to operate brake through lever arrangement.
Construction:
The Thruster cylinder accommodates a centrifugal pump and a piston with two push-rods extending outside through thruster cover and transmitting effort to the brake. When integral three phase squirrel cage motor is energized, it spins the impeller, which is immersed in oil. Spinning of impeller generate a pressure head in the oil which is impressed upon a piston. This process generates force that gets transmitted to lever of brake by means of a push rod.
Robust designed Thrusters unit is compact, has long life and is easy to maintain. Main components used are of high-quality cast iron, steel and high grade polymers.
Application:
In all Electric Operated Cranes, Winches & Other material handling equipment. Thrusters are used to apply force to operate brake.
Features :
1. Constant Pressure
2. Ease in maintenance
3. Fins provided on motor body for better heat dissipation
4. Gentle Application and release of brake without jerks and shocks
5. Larger number of switching-in operations per hour (up to 600)
6. Easily adapted to any form of existing or new machine
7. Practically all rubbing surfaces are immersed in oil
8. Made of only high-quality cast iron steel and high-grade polymers
9. Overload or under load on thrusters cannot cause damage to the motor
The rated stroke of each type of thruster can be changed, retaining the same attractive force, by means of sleeves fitted on the rods (inside the body)
(this arrangement is possible with models from ST 535 and above)
THRUSTER SPECIFICATION
Model: EMT - 4 (ST 546)
Thrust Capacity: 68 KG / 667 N
Thruster Stoke (MM): 76
Input Watt: 200 watts
Input Supply: 415 V
Oil Capacity: 4.5 Ltr.
Weight: 40 Kg.
Features :
1. Constant Pressure
2. Ease in maintenance
3. Fins provided on motor body for better heat dissipation
4. Gentle Application and release of brake without jerks and shocks
5. Larger number of switching-in operations per hour (up to 600)
6. Easily adapted to any form of existing or new machine
7. Practically all rubbing surfaces are immersed in oil
8. Made of only high-quality cast iron steel and high-grade polymers
9. Overload or under load on thrusters cannot cause damage to the motor
The rated stroke of each type of thruster can be changed, retaining the same attractive force, by means of sleeves fitted on the rods (inside the body)
(this arrangement is possible with models from ST 535 and above)
