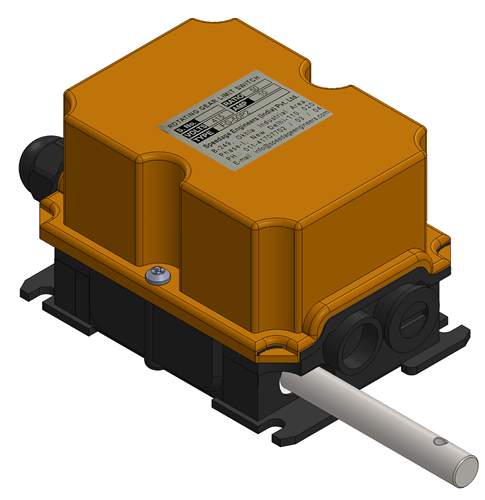

WORM DRIVE LIMIT SWITCH(FG)

 Application

The new range of Limit Switch has been designed and manufactured for use on reversing drives such as hoists, winches, rolling mills etc. It is compact in design and can be easily accommodated and installed on electric hoists, where space constrains are there.

The driving motion is transmitted by worm gear. All gears and hubs are made of low wear thermoplastics. The rotational movements are transmitted to switches by adjustable cams.

These Limit Switches come with worm gear drive ratio of 1:12.5, 1:50, 1:100, and 1:200. Specific worm gear drive ratios can also be supplied on request, as per the customer’s requirement.

These Limit Switches are supplied with IP65 degree of protection.

The contacts of the limit switches are 10 amps. rated at 500 V a.c.
